Building a Home DNS Server with PowerDNS

⚠️ Note: Auto-translated Article

This page was generated by AI-assisted automatic translation from the original Japanese article.

Introduction

This article describes the procedure for building a home DNS server on Rocky Linux 9 using the PowerDNS package suite.

Home DNS Server Configuration

This article builds the following configuration:

Item	Setting
Hardware	Virtual environment with Proxmox VE already installed
OS	Rocky Linux 9 (LXC container)
Memory	2GB
Storage	20GB
DNS Authoritative Server	PowerDNS Authoritative Server
DNS Resolver	PowerDNS Recursor
DNS Proxy & Load Balancer	PowerDNS DNSdist
DNS Backend DB	MariaDB
WebUI for DNS Authoritative Server	PowerDNS-Admin (Docker)

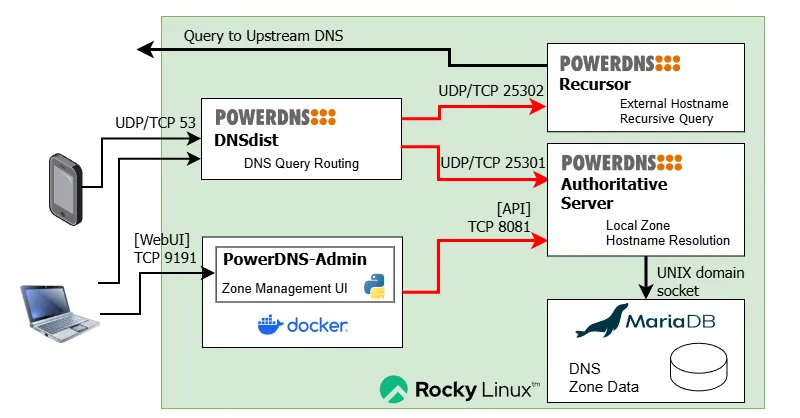

DNS Server Architecture

Setup Procedure

Configuration Parameters

Collect all configuration values upfront. Replace the values in the scripts below to match your own environment.

System	Item	Setting
DNS Server	Hostname	dns01
DNS Server	IPv4 Address	192.0.2.50/24
DNS Server	IPv4 Default Gateway	192.0.2.1
DNS Server	IPv6 Address	2001:DB8::32/64
DNS Server	IPv6 Default Gateway	2001:DB8::1/64
DNS Server	Upstream DNS Forwarder	1.1.1.1 1.0.0.1 2606:4700:4700::1111 2606:4700:4700::1001
MariaDB	Version	11.4 (LTS)
MariaDB	root password	6g8nS9QSC5HDhdbx
MariaDB	pdnsadmin user password	3mwH1QeuiMV53157
PowerDNS DNSdist	Version	1.9.8
PowerDNS DNSdist	Listen Port	UDP/TCP 53
PowerDNS DNSdist	Web UI password	36J55V7jUk0D
PowerDNS DNSdist	Web API Key	ab164a08-1775-4dff-a633-4a9b542605e2
PowerDNS Authoritative Server	Version	4.9
PowerDNS Authoritative Server	DNS Listen Port	UDP/TCP 25301
PowerDNS Authoritative Server	API KEY	faa5b1ce-1495-4fce-9129-735078a675f2
PowerDNS Authoritative Server	API Listen port	8081
PowerDNS Recursor	Version	5.1
PowerDNS Recursor	Listen Port	UDP/TCP 25302
PowerDNS-Admin	Version	0.4.2
PowerDNS-Admin	Listen Port	TCP 9191
DNS Zone	Zone name	home
DNS Zone	IPv4 segment	192.0.2.0/24
DNS Zone	IPv6 segment	2001:DB8::/64

IPv4/IPv6 addresses use documentation addresses per RFC 5737 / RFC 3849
Passwords generated with develop.tools | Password Generator
API keys generated with develop.tools | UUID Generator
“Upstream DNS Forwarder” should be your ISP’s DNS IP or a public DNS
- The example uses Cloudflare IPv4/IPv6 addresses

MariaDB Installation

dnf Repository Setup

Example for MariaDB 11.4 LTS:

MARIADBVERSION=11.4
cat <<__EOT__> /etc/yum.repos.d/mariadb.repo
[mariadb]
name = MariaDB
baseurl = https://rpm.mariadb.org/${MARIADBVERSION}/rhel/\$releasever/\$basearch
gpgkey= https://rpm.mariadb.org/RPM-GPG-KEY-MariaDB
gpgcheck=1
__EOT__

Install

dnf install -y MariaDB-server
systemctl enable mariadb
systemctl start mariadb

MariaDB Initial Setup

Initial security settings

mariadb-secure-installation

Enter current password for root (enter for none): [Enter] Switch to unix_socket authentication [Y/n] y[Enter] Change the root password? [Y/n] y[Enter] 6g8nS9QSC5HDhdbx 6g8nS9QSC5HDhdbx (Enter the MariaDB root password twice) Remove anonymous users? [Y/n] y[Enter] Disallow root login remotely? [Y/n] y[Enter] Remove test database and access to it? [Y/n] y[Enter] Reload privilege tables now? [Y/n] y[Enter]

Log Settings

Edit /etc/my.cnf.d/server.conf with vi ※ The default produces too many warning messages

[mysqld]
log_warnings = 1

Enter the password when prompted

# mariadb -u root -p
Enter password: 6g8nS9QSC5HDhdbx[Enter]
Welcome to the MariaDB monitor.  Commands end with ; or \g.
Your MariaDB connection id is 2397
Server version: 11.4.4-MariaDB MariaDB Server

Copyright (c) 2000, 2018, Oracle, MariaDB Corporation Ab and others.

Type 'help;' or '\h' for help. Type '\c' to clear the current input statement.

MariaDB [(none)]>

Set up the PowerDNS user

CREATE DATABASE pdns;
GRANT ALL ON pdns.* TO pdnsadmin@localhost IDENTIFIED BY '3mwH1QeuiMV53157';
FLUSH PRIVILEGES;

Verify settings

SHOW GRANTS FOR pdnsadmin@localhost;

OK if the following is displayed

Grants for pdnsadmin@localhost

Exit with [Ctrl]-[D]

Installing PowerDNS Packages

Repository Setup

Reference: https://repo.powerdns.com/

Example for PowerDNS Authority 4.9 / PowerDNS Recursor 5.1 / dnsdist 1.9:

PDNS_AUTH_VER=49
PDNS_RECURSOR_VER=51
PDNS_DNSDIST_VER=19
curl -o /etc/yum.repos.d/powerdns-auth-${PDNS_AUTH_VER}.repo https://repo.powerdns.com/repo-files/el-auth-${PDNS_AUTH_VER}.repo
curl -o /etc/yum.repos.d/powerdns-rec-${PDNS_RECURSOR_VER}.repo https://repo.powerdns.com/repo-files/el-rec-${PDNS_RECURSOR_VER}.repo
curl -o /etc/yum.repos.d/powerdns-dnsdist-${PDNS_DNSDIST_VER}.repo https://repo.powerdns.com/repo-files/el-dnsdist-${PDNS_DNSDIST_VER}.repo

Package Installation

dnf install -y pdns pdns-backend-mysql pdns-recursor dnsdist

MariaDB Setup for PowerDNS

Enter the DB password when prompted

mariadb -u pdnsadmin -p pdns < /usr/share/doc/pdns-backend-mysql/schema.mysql.sql
XXXXXXXXXXXX

PowerDNS Auth (Authoritative Server) / Recursor Configuration

Back up the original PDNS Auth configuration

cp -a /etc/pdns/pdns.conf /etc/pdns/pdns.conf.DEFAULT

PDNS_AUTH_BASE='/etc/pdns'
PDNS_RECURSOR_BASE='/etc/pdns-recursor'
# Generated with a UUID generator tool
PDNS_AUTH_APIKEY='faa5b1ce-1495-4fce-9129-735078a675f2'
MARIADB_PASSWORD='3mwH1QeuiMV53157'
# For Cloudflare
UPSTREAM_DNS_IPv4_1=1.1.1.1
UPSTREAM_DNS_IPv4_2=1.0.0.1
UPSTREAM_DNS_IPv6_1=2606:4700:4700::1111
UPSTREAM_DNS_IPv6_2=2606:4700:4700::1001

# PDNS Auth config
cat <<__EOT__ >${PDNS_AUTH_BASE}/pdns.conf
api=yes
api-key=${PDNS_AUTH_APIKEY}
webserver=yes
webserver-address=0.0.0.0
# Enable access from Docker bridge network
webserver-allow-from=127.0.0.0/8,172.29.0.0/16
webserver-port=8081
launch=gmysql
gmysql-socket=/var/lib/mysql/mysql.sock
gmysql-user=pdnsadmin
gmysql-password=${MARIADB_PASSWORD}
gmysql-dbname=pdns
local-address=127.0.0.1 ::1
local-port=25301
security-poll-suffix=
setgid=pdns
setuid=pdns
# log-dns-details=yes
# log-dns-queries=yes
log-timestamp=yes
# logging-facility=0
# loglevel=7
dnsupdate=yes
allow-dnsupdate-from="127.0.0.0/8, ::1/128"
__EOT__
chgrp pdns ${PDNS_AUTH_BASE}/pdns.conf
chmod 640 ${PDNS_AUTH_BASE}/pdns.conf

# PDNS Recursor config (YAML format)
cat <<__EOT__ >${PDNS_RECURSOR_BASE}/recursor.d/recursor.yml
incoming:
  listen:
    - 127.0.0.1
    - ::1
  allow_from:
    - 127.0.0.0/8
    - '::1/128'
  port: 25302
  tcp_fast_open: 100
outgoing:
  tcp_fast_open_connect: true
  source_address:
    - 0.0.0.0
    - '::'
recursor:
  extended_resolution_errors: true
  serve_rfc1918: false
  hint_file: no-refresh
  forward_zones_recurse:
    - zone: .
      forwarders:
        - ${UPSTREAM_DNS_IPv4_1}
        - ${UPSTREAM_DNS_IPv4_2}
        - ${UPSTREAM_DNS_IPv6_1}
        - ${UPSTREAM_DNS_IPv6_2}
  lua_config_file: ${PDNS_RECURSOR_BASE}/recursor.d/nta.lua
logging:
  # loglevel: 7
  # common_errors: true
  # quiet: false
  timestamp: true
  # trace: false
__EOT__

echo "Creating syslog configuration:"
mkdir -p /var/log/powerdns
chmod a+w /var/log/powerdns
cat <<__EOT__ > /etc/rsyslog.d/powerdns.conf
if ($programname contains 'pdns-recursor') then {
    action(type="omfile" file="/var/log/powerdns/pdns-recursor.log")
}
if ($programname contains 'pdns_server') then {
    action(type="omfile" file="/var/log/powerdns/pdns-auth.log")
}
__EOT__

echo "Creating logrotate configration:"
cat <<__EOT__ > /etc/logrotate.d/powerdns
/var/log/powerdns/*.log
{
    missingok
    sharedscripts
    postrotate
        /usr/bin/systemctl -s HUP kill rsyslog.service >/dev/null 2>&1 || true
    endscript
}
__EOT__

systemctl reload rsyslog.service
systemctl enable pdns-recursor.service
systemctl restart pdns-recursor.service
systemctl enable pdns.service
systemctl restart pdns.service

dnsdist Configuration

Back up the original PDNS dnsdist configuration

mkdir /var/log/dnsdist
cp -a /etc/dnsdist/dnsdist.conf /etc/dnsdist/dnsdist.conf.ORG

Generate the web API key

$ dnsdist -l 127.0.0.1:5300 -C /dev/null
> hashPassword('ab164a08-1775-4dff-a633-4a9b542605e2')
$scrypt$ln=10,p=1,r=8$7aMm9zGGfidk3qBQJ5TIgQ==$CAO2O0SnvfHnCKbftNf+qfrar4cgPhB0TREc1p89dHU=

Generate the console key

$ dnsdist -l 127.0.0.1:5300 -C /dev/null
> makeKey()
setKey("J7lAScDbcLtFGVtXsZf8eKxWj0/4+4NJ3Mb7BkFseHc=")

Service Configuration

# Paste from the configuration parameters decided earlier
WEBPASSWORD="36J55V7jUk0D"
# Paste the value generated inside dnsdist above
WEBAPIKEY='$scrypt$ln=10,p=1,r=8$7aMm9zGGfidk3qBQJ5TIgQ==$CAO2O0SnvfHnCKbftNf+qfrar4cgPhB0TREc1p89dHU='
# Paste the value generated inside dnsdist above
CONSOLEKEY='J7lAScDbcLtFGVtXsZf8eKxWj0/4+4NJ3Mb7BkFseHc='
LOCALIP='192.0.2.50'
LOCALSEGMENTV4='192.0.2.0/24'
LOCALSEGMENTV6='2001:DB8::/64'
FORWARD_ZONE="home"
PTR_ZONE="2.0.192.in-addr.arpa"

cat <<__EOT__ > /etc/dnsdist/dnsdist.conf
-- disable security status polling via DNS, we know we're EOL
setSecurityPollSuffix('')

-- Set Netmask Group
-- https://dnsdist.org/reference/netmaskgroup.html
allowQueryAddresses = newNMG()
allowQueryAddresses:addMask('127.0.0.0/8')
allowQueryAddresses:addMask('::1/128')
allowQueryAddresses:addMask('fe80::/64')
allowQueryAddresses:addMask('${LOCALSEGMENTV4}')
allowQueryAddresses:addMask('${LOCALSEGMENTV6}')

allowUpdateAddresses = newNMG()
allowUpdateAddresses:addMask('${LOCALSEGMENTV4}')
allowUpdateAddresses:addMask('${LOCALSEGMENTV6}')

-- ACL of DNS query
-- https://dnsdist.org/advanced/acl.html
setACL('0.0.0.0/0')
addACL('::/0')

-- dnsdist listen server IP:port
-- https://dnsdist.org/reference/config.html#listen-sockets
-- https://dnsdist.org/reference/config.html#setLocal
-- https://dnsdist.org/reference/config.html#addLocal
-- set primary listen address
setLocal('0.0.0.0:53')
addLocal('[::]:53')

-- Backend: IP:port, backend name, max queries per second
-- https://dnsdist.org/reference/config.html#newServer
newServer({address='127.0.0.1:25301', name='authoritive', pool={'auth'}})
newServer({address='127.0.0.1:25302', name='recursor', pool={'resolver'}})

-- Logging settings
-- https://dnsdist.org/reference/actions.html#LogAction
-- LogAction([filename[, binary[, append[, buffered[, verboseOnly[, includeTimestamp]]]]]])
-- Uncomment below only when debugging queries
-- addAction(AllRule(), LogAction('/var/log/dnsdist/query.log', false, false, false, true, true))

-- [How to generate key]
-- https://dnsdist.org/guides/console.html
--   dnsdist -l 127.0.0.1:5300 -C /dev/null
--   > makeKey()
setKey('${CONSOLEKEY}')
controlSocket('${LOCALIP}:5199')
setConsoleACL({
    '${LOCALSEGMENTV4}',
    '192.168.2.0/24'
})

-- SuffixMatchNode
-- https://dnsdist.org/reference/config.html#suffixmatchnode
authdomains = newSuffixMatchNode()
authdomains:add(newDNSName('${FORWARD_ZONE}.'))
authdomains:add(newDNSName('${PTR_ZONE}.'))

-- Routing rules
-- https://dnsdist.org/reference/rules-management.html
-- https://dnsdist.org/reference/actions.html
addAction(
    SuffixMatchNodeRule(authdomains),
    PoolAction('auth')
)
addAction(
    OpcodeRule(DNSOpcode.Update),
    PoolAction('auth')
)
addAction(
    NetmaskGroupRule(allowQueryAddresses),
    PoolAction('resolver')
)

-- dnsdist dashboard
-- https://dnsdist.org/guides/webserver.html
-- https://dnsdist.org/reference/config.html#webserver
webserver('0.0.0.0:8083')
setWebserverConfig({
    password='${WEBPASSWORD}',
    apikey='${WEBAPIKEY}',
    acl='0.0.0.0/0,::/0'
})
__EOT__
systemctl enable dnsdist.service
systemctl start dnsdist.service

Zone Registration Example

Reference: PowerDNS Manual: pdnsutil

PDNS_RECURSOR_BASE='/etc/pdns-recursor'
ZONE="home"
PTR_ZONE="2.0.192.in-addr.arpa"
SOA_MASTER="dns01.${ZONE}."
SOA_CONTACT="hostmaster.${ZONE}."
SOA_SERIAL=0
SOA_REFRESH=28800 # 8 hours
SOA_RETRY=3600 # 1 hour
SOA_EXPIRE=2419200 # 28 days
SOA_NEGATIVE=900 # 15 minutes
SOA_RECORD="${SOA_MASTER} ${SOA_CONTACT} ${SOA_SERIAL} ${SOA_REFRESH} ${SOA_RETRY} ${SOA_EXPIRE} ${SOA_NEGATIVE}"
RR_TTL=3600 # 1 hour

LOCAL_SEGMENT=""

# clear zone
pdnsutil delete-zone "${ZONE}"
pdnsutil delete-zone "${PTR_ZONE}"

## SAMPLE ZONE ENTRY
# Create Forward lookup zone
pdnsutil create-zone "${ZONE}"
pdnsutil set-kind "${ZONE}" native
pdnsutil replace-rrset "${ZONE}" @ SOA "${SOA_RECORD}"
pdnsutil add-record "${ZONE}" @ NS dns01.${ZONE}.

## Register DNS server itself (forward lookup)
pdnsutil add-record "${ZONE}" dns01 A 192.0.2.50
pdnsutil add-record "${ZONE}" dns01 AAAA '2001:DB8::32'

# Create Reverse lookup zone
pdnsutil create-zone "${PTR_ZONE}"
pdnsutil set-kind "${PTR_ZONE}" native
pdnsutil replace-rrset "${PTR_ZONE}" @ SOA "${SOA_RECORD}"
pdnsutil add-record "${PTR_ZONE}" @ NS dns01.${ZONE}.

## Register DNS server itself (reverse lookup)
pdnsutil add-record "${PTR_ZONE}" 50 PTR dns01.home.

Register NTA in Recursor

Without this, name resolution will fail and you will be puzzled.

cat <<__EOT__ > ${PDNS_RECURSOR_BASE}/recursor.d/nta.lua
addNTA('${ZONE}', 'internal domains')
addNTA('${PTR_ZONE}', 'private ptr zone')
__EOT__
systemctl restart pdns-recursor.service

Adding the PowerDNS WebUI

Install Docker Engine

dnf config-manager --add-repo https://download.docker.com/linux/centos/docker-ce.repo
dnf install -y docker-ce docker-compose-plugin
# change bridge network
cat <<'__EOT__' >/etc/docker/daemon.json
{
    "default-address-pools":[
        {
            "base":"172.29.0.0/16",
            "size":24
        }
    ]
}
__EOT__
# start dockerd
systemctl enable docker.service
systemctl start docker.service

Deploy PowerDNS-Admin (Docker)

Paste the previously created PowerDNS Authoritative Server API key.

docker run -d \
    -e SECRET_KEY='faa5b1ce-1495-4fce-9129-735078a675f2' \
    -v pda-data:/data \
    -p 9191:80 \
    --restart always \
    powerdnsadmin/pda-legacy:latest

PowerDNS-Admin Initial Setup

Access via browser: http://192.0.2.50:9191/

Create an account
First Name: FIRSTNAME
Last Name: LASTNAME
Email: [email protected]
Username: xxxx
Password: XXXXXXXXX

Configure in the WebUI ※ Note: the PowerDNS Authoritative Server IP as seen from inside Docker is the host itself via the docker0 bridge — specify the first IP of the docker0 bridge.

PowerDNS API URL: http://172.29.0.1:8081/
PowerDNS API Key: faa5b1ce-1495-4fce-9129-735078a675f2

Once configured, zone editing becomes available from the Web UI.

Adjusting Startup Order

By default, the startup order on reboot can cause failures. Add dependencies to the systemd configuration.

Add to /usr/lib/systemd/system/pdns.service:

[Unit]
#...
Wants=mariadb.service
After=mariadb.service

Add to /usr/lib/systemd/system/pdns-recursor.service:

[Unit]
#...
After=pdns.service

Add to /usr/lib/systemd/system/dnsdist.service:

[Unit]
#...
After=pdns.service pdns-recursor.service

Apply to systemd:

systemctl daemon-reload

Verification

Post-Reboot Service Check

Check processes:

ps axuw | grep "pdns|dnsdist"

Confirm that pdns_server, pdns_recursor, and dnsdist processes are running.

dnsdist      185  0.1  3.9 2108992 83432 ?       SLsl Jan04  14:28 /usr/bin/dnsdist --supervised --disable-syslog
pdns-re+ 2350190  0.0  1.3 420764 28412 ?        Ssl  18:27   0:07 /usr/sbin/pdns_recursor --daemon=no --write-pid=no --disable-syslog --log-timestamp=no
pdns     2378134  0.0  2.9 677380 62080 ?        SLsl 20:43   0:00 /usr/sbin/pdns_server --guardian=no --daemon=no --disable-syslog --log-timestamp=no --write-pid=no

Check logs for errors:

less /var/pdns-auth.log
less /var/pdns-recursor.log

External Query Test

Test using the dig command on the server:

# dig +noall +ans @localhost blog.yamk.net A
blog.yamk.net.          216     IN      A       172.67.199.171
blog.yamk.net.          216     IN      A       104.21.21.177
# dig +noall +ans @localhost blog.yamk.net AAAA
blog.yamk.net.          300     IN      AAAA    2606:4700:3032::ac43:c7ab
blog.yamk.net.          300     IN      AAAA    2606:4700:3033::6815:15b1

Internal Query Test

# dig +noall +ans @localhost dns01.home A
dns01.home.             3600    IN      A       192.0.2.50
# dig +noall +ans @localhost dns01.home AAAA
dns01.home.             3600    IN      AAAA    2001:DB8::32

Test reverse lookup too:

# dig +noall +ans @localhost -x 192.168.0.24
24.0.168.192.in-addr.arpa. 3600 IN      PTR     dns01.home.

Query Test from a PC

Test from Windows PowerShell on a client PC, specifying the DNS server. The Resolve-DnsName cmdlet’s -Type A_AAAA option queries both IPv4 and IPv6 addresses at once.

External host:

Resolve-DnsName -Name blog.yamk.net -Server 192.0.2.50 -Type A_AAAA

Name              Type   TTL   Section    IPAddress
----              ----   ---   -------    ---------
blog.yamk.net     AAAA   176   Answer     2606:4700:3033::6815:15b1
blog.yamk.net     AAAA   176   Answer     2606:4700:3032::ac43:c7ab
blog.yamk.net     A      99    Answer     172.67.199.171
blog.yamk.net     A      99    Answer     104.21.21.177

Internal host forward lookup:

Resolve-DnsName -Name dns01.home -Server 192.0.2.50 -Type A_AAAA

Name              Type   TTL   Section    IPAddress
----              ----   ---   -------    ---------
dns01.home        AAAA   3600  Answer     2001:DB8::32
dns01.home        A      3600  Answer     192.0.2.50

Internal host reverse lookup:

Resolve-DnsName -Name 192.168.0.24 -Server 192.168.0.24 -Type PTR

Name                        Type   TTL   Section    NameHost
----                        ----   ---   -------    --------
50.2.0.192.in-addr.arpa     PTR    3600  Answer     dns01.home

Final Steps

After testing everything and confirming it works, update the DNS server address distributed by the home LAN’s DHCP server to point to the newly built DNS server. Keep the original DNS server as a fallback.

Example:

Primary DNS Server: 192.0.2.50 ※ newly built DNS
Secondary DNS Server: 192.0.2.1 ※ original DNS server (broadband router, etc.)

Once client devices start querying the new DNS server, run further tests to confirm stability.

Done.

Notes

Having an independent DNS server rather than relying on the DNS built into a broadband router or home gateway makes the internet noticeably faster. If resources and maintenance costs allow, setting up a home DNS is highly recommended. Building it yourself won’t solve every problem, but there will always be something to gain.

That said, DNS knowledge is required, so be mindful not to cause trouble for upstream ISPs through careless operation.

Two Meanings of “Home DNS”

There are mainly two things needed from a home (or small office) DNS server:

(1) DNS for External Internet Access

DNS is always used when accessing external services — browsing the web, streaming apps, online games, cloud services, etc.

When a modern website is accessed from a PC or smartphone, a single page load involves complex back-and-forth across many domains — JavaScript, fonts, analytics, ads, and more.

Meanwhile, CDNs (Content Delivery Networks) like Akamai and Cloudflare, which have become widespread in recent years:

Deploy content servers worldwide
Return different host IPs on each query (redundancy + geographic optimization)

Because of this, DNS cache TTLs are short, meaning DNS requests fire frequently even for the same URL.

DNS caching and DNS proxy functionality is built into broadband routers and ISP-provided home gateways, but their configurability is limited and resolution performance is often mediocre — so faster DNS response times have a real, noticeable impact.

Also, with IPv6 becoming widespread, response data often exceeds the original DNS spec limit (512 bytes), so support for EDNS0 message size extension (rather than the slower TCP fallback) is desirable.

There have also been cases where broadband router DNS bugs caused unstable internet access.

(2) DNS for Local Servers

Once you start running multiple Linux servers, you quickly want to access them by hostname.

Technologies like NBT (NetBIOS over TCP/IP), Apple Bonjour, LLMNR, and more recently mDNS automatically map hostnames to IP addresses within the same segment — but they only work within broadcast/multicast range. The moment you segment your network, hostnames on other segments become invisible.

In my case, I run virtual routers inside virtual environments to separate segments, and also access the home LAN from outside via OpenVPN — so being able to use clear, readable hostnames everywhere matters.

A server that maps “hostname + domain” directly to “IP address” is called an Authoritative Server. Broadband routers and home gateways often have a simplified version, but they’re not particularly user-friendly.

Since hostnames within a home network change over time, it’s helpful to have something easy to maintain via a web management interface.

Thoughts on PowerDNS

PowerDNS Recursor has migrated its config to YAML, but Authoritative Server still uses the old format.
PowerDNS DNSdist uses Lua format, which is extremely confusing.
Performance aside, I wish a single brand would unify its configuration approach…
For pure caching DNS performance, Unbound might be a better choice.

Remaining Topics

Home DHCP server with Kea DHCP
- A broadband router should really only need to handle firewall and NAT
- There are few Japanese articles on Kea DHCP, and its spec keeps changing
Integrating Kea DHCP to dynamically register hostnames in DNS
- Seems feasible but unconfirmed

References

PowerDNS as an alternative to BIND Designet
Why Can’t We Quit BIND? Q&A Internet Initiative Japan, Minoru Shimamura, 2016/6/24

Introduction#

Home DNS Server Configuration#

DNS Server Architecture#

Setup Procedure#

Configuration Parameters#

MariaDB Installation#

dnf Repository Setup#

MariaDB Initial Setup#

Log Settings#

First MariaDB Login#

Installing PowerDNS Packages#

Repository Setup#

Package Installation#

MariaDB Setup for PowerDNS#

PowerDNS Auth (Authoritative Server) / Recursor Configuration#

dnsdist Configuration#

Service Configuration#

Zone Registration Example#

Register NTA in Recursor#

Adding the PowerDNS WebUI#

Install Docker Engine#

Deploy PowerDNS-Admin (Docker)#

PowerDNS-Admin Initial Setup#

Adjusting Startup Order#

Verification#

Post-Reboot Service Check#

External Query Test#

Internal Query Test#

Query Test from a PC#

Final Steps#

Notes#

Two Meanings of “Home DNS”#

(1) DNS for External Internet Access#

(2) DNS for Local Servers#

Thoughts on PowerDNS#

Remaining Topics#

References#
